TRUK

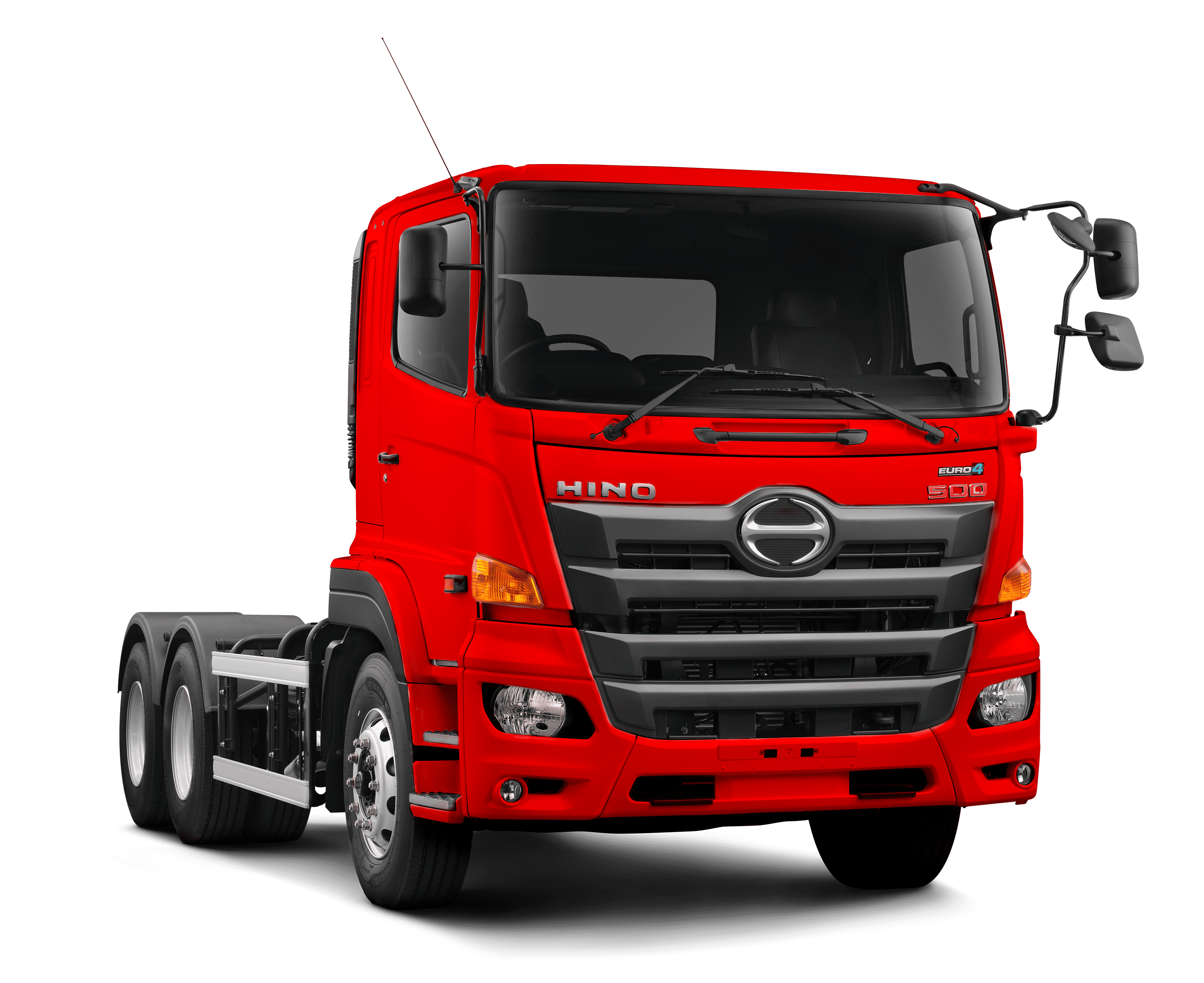

FM 340 TH ABS - Euro4
.png)
1.png)
2.png)
FM 340 TH ABS - Euro4
| Kecepatan Maksimum | Km/h | 103 |
| Daya Tanjak | (tan %) | 33 |
| Model | - | P11C-WN |
| Model Tipe | - | Mesin Diesel 4 Langkah Segaris; Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | JIS Gross (PS/rpm) | 350 / 2.100 |
| Daya maksimum | JIS Gross (Kgm/rpm) | 134 / 1.500 |
| Tenaga Maksimum | ISO-NET (PS/rpm) | 340 / 2.100 |
| Daya maksimum | ISO-NET (Kgm/rpm) | 130 / 1.500 |
| Jumlah silinder | - | 6 |
| Diameter x Langkah Piston | (mm) | 122 x 150 |
| Isi Silinder | cc | 10.520 |
| Tipe | - | Pelat Kering Tunggal, dengan Coil Spring |
| Diameter Cakram | (mm) | 430 |
| Tipe | - | M009OD |
| C | - | 10.178 |
| Ke-1 | - | 6.986 |
| Ke-2 | - | 5.063 |
| Ke-3 | - | 3.636 |
| Ke-4 | - | 2.633 |
| Ke-5 | - | 1.921 |
| Ke-6 | - | 1.392 |
| Ke-7 | - | 1.000 |
| Ke-8 | - | 0.724 |
| Mundur | - | 9.874 |
| Tipe | - | Integral Power Steering |
| Minimal Radius Putar | mm | 7,6 |
| Depan | - | Reverse Elliot, I-Section Beam |
| Belakang | - | Full Floating Tipe Hypoid Gear |
| Perbandingan Gigi Akhir | - | 5,857 |
| Rem Utama | - | Full Air dengan Sirkuit Ganda (ABS) |
| Rem Pelambat | - | Terletak pada Pipa Gas Buang |
| Rem Parkir | - | Spring Brake |
| Ukuran Rim | - | 22.5X8.25-165 |
| Ukuran Ban | - | 295/80R22.5* |
| Jumlah Ban | - | 10 + 1(Cadangan) |
| Accu | V-Ah | 12V-65AH×2 |
| Kapasitas | L | 200 |
| Jarak Sumbu Roda | WB (mm) | 3.480+1.350 |
| Total Panjang | OL (mm) | 7.100 |
| Total Lebar | OW (mm) | 2.490 |
| Total Tinggi | OH (mm) | 2.850 |
| Lebar Jejak Depan | FR Tr (mm) | 2.050 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.860 |
| Julur Depan | FOH (mm) | 1.360 |
| Julur Belakang | ROH (mm) | 890 |
| Kabin Kesumbu Roda Belakang | CA (mm) | 3.425 |
| Depan | Rigid Axle dengan Pegas Daun Semi Elliptic | |
| Belakang | Tipe Trunnion Suspensi, Rigid Axle dengan Pegas Daun Semi Elliptic |
| Berat Kosong | (kg) | 8,390 |
| Berat Total Kendaraan | (kg) | 46.000 |
