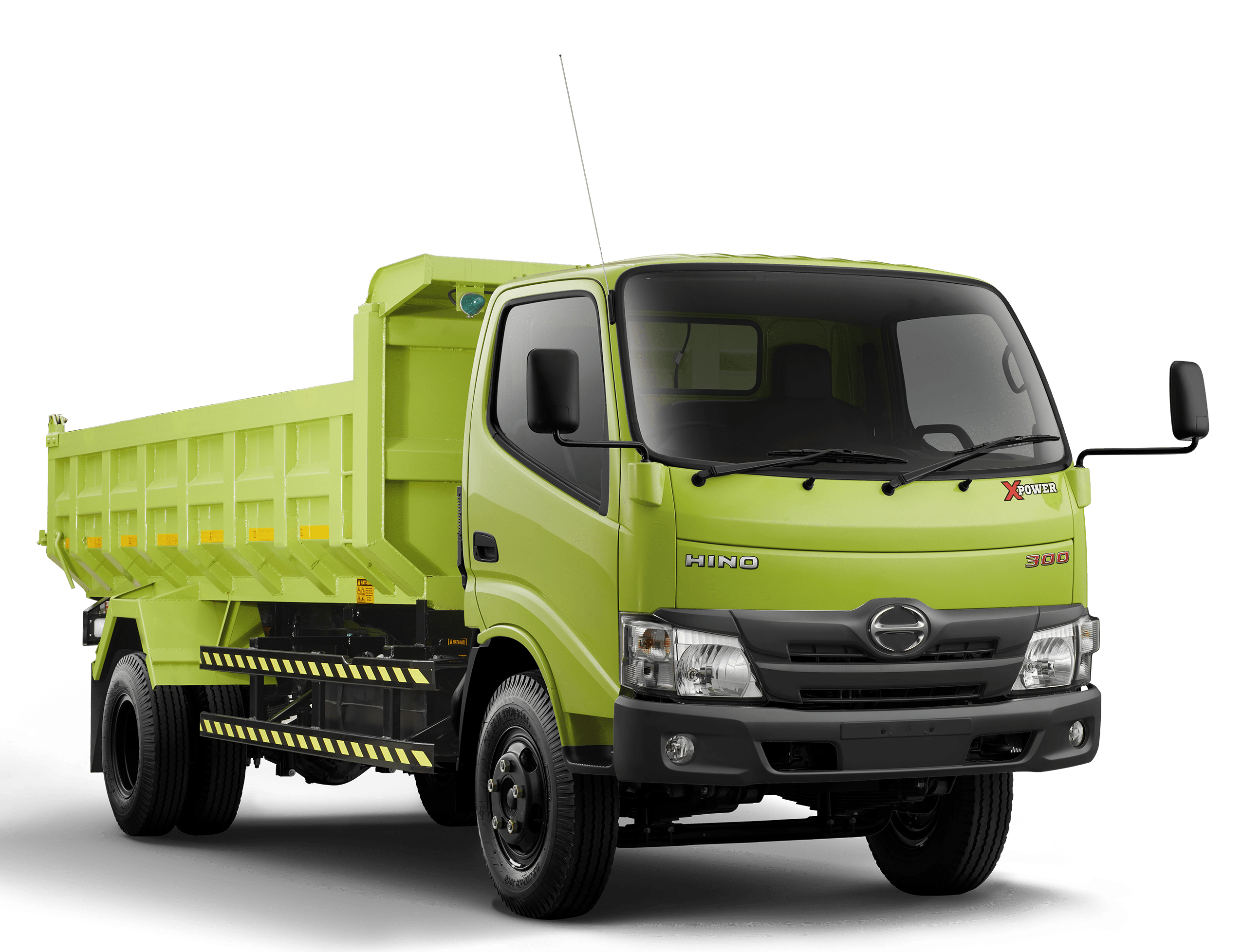

TRUK
136 HDX - Euro4
136 HDX - Euro4
| Kecepatan Maksimum | (Km/Jam) | 109/93 |
| Daya Tanjak | (Tan %) | 47,5/58,1 |
| Model | - | N04C-WY |
| Model Tipe | - | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | (PS/rpm) | 136 / 2.500 |
| Daya maksimum | (Kgm/rpm) | 40 / 1.400-2.500 |
| Jumlah silinder | - | 4 |
| Diameter x Langkah Piston | (mm) | 104 x 118 |
| Isi Silinder | (cc) | 4.009 |
| Tipe | - | Pelat Kering Tunggal; Hydraulic Operation |
| Diameter Cakram | mm | 300 |
| Tipe | - | RE61 |
| Ke-1 | - | 6,370 |
| Ke-2 | - | 3,870 |
| Ke-3 | - | 1,913 |
| Ke-4 | - | 1,461 |
| Ke-5 | - | 1,000 |
| Mundur | - | 5,926 |
| Tipe | - | Power Steering (Recirculating Ball Screw) |
| Minimal Radius Putar | m | 6,9 |
| Depan | - | Reverse Elliot,I-Section Beam |
| Belakang | - | Full-floating; Single Reduction; Single speed by Hypoid Gearings |
| Perbandingan Gigi Akhir | - | 5,857/6,833 |
| Rem Utama | - | Vaccum Servo dengan sirkuit ganda; dilengkapi dengan Booster |
| Rem Pelambat | - | Terletak pada Pipa Gas Buang |
| Rem Parkir | - | Internal Expanding pada Output Shaft Transmission |
| Ukuran Rim | - | 16 x 6.00GS-127 |
| Ukuran Ban | - | 7.50-16-14PR |
| Jumlah Ban | - | 6 (+1) |
| Depan & Belakang | - | Rigid Axle dengan Pegas Daun Semi Elliptic |
| Accu | - | 12V-100Ah x 1 |
| Jarak Sumbu Roda | WB (mm) | 3.380 |
| Total Panjang | OL (mm) | 6.026 |
| Total Lebar | OW (mm) | 1.945 |
| Total Tinggi | OH (mm) | 2.154 |
| Lebar Jejak Depan | FR Tr (mm) | 1.455 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.480 |
| Julur Depan | FOH (mm) | 1.066 |
| Julur Belakang | ROH (mm) | 1.580 |
| Kabin Kesumbu Roda Belakang | CA (mm) | 2.900 |
| Kapasitas | liter | 100 |
| Berat Kosong | Kg | 2.410 |
| Berat Total Kendaraan | Kg | 8.600 |
